Adjustable Width Sheep Handling Race

The Adjustable Width Sheep Handling Race is a modular livestock handling system engineered to guide goat-farming-equipment/" target="_blank" class="keylink">sheep through a controlled single-file passage during drafting, weighing, identification, vaccination, drenching, inspection and other routine flock management procedures.

The adjustable raceway allows the working width to be adapted to different sheep sizes, breeds, wool conditions and management requirements. A correctly adjusted race helps restrict excessive sideways movement and encourages animals to continue forward through the handling system.

The structure can incorporate fully sheeted race sides that reduce visual distractions and help prevent legs or heads from projecting through open rails. Safe-edged sheet-metal construction further improves suitability for intensive livestock handling environments.

Designed for commercial sheep farms, livestock contractors, breeding operations and agricultural engineering projects, the system can be integrated with holding pens, drafting gates, guillotine gates, weighing equipment, foot baths and additional sheep handling components.

• Adjustable Raceway Width: Side sections can be configured to suit different sheep sizes and handling requirements.
• Improved Stock Flow: Proper width adjustment helps maintain forward movement and reduces turning or excessive sideways movement.
• Sheeted Race Sides: Solid sections reduce external visual distractions and improve livestock containment.
• Safe-Edged Sheet Metal: Formed sheet edges help reduce the risk of cuts and abrasions during livestock movement.
• Hot-Dip Galvanized Construction: Provides corrosion protection for demanding agricultural environments.
• Modular Configuration: Race sections can be combined with gates, panels, drafting equipment and livestock weighing systems.
• Portable or Fixed Layout: Suitable for relocatable handling systems or permanent sheep yard installations.
• Ground-Stabilizing Connections: Extended joining stakes can be used to help secure portable race sections into suitable ground.
• Project Customization: Race length, width, gates and accessories can be configured according to project requirements.

• Galvanized tubular steel supporting frame
• Adjustable raceway side sections
• Sheeted sheep hurdles or solid guide panels
• Race joining section
• Joining pins or ground stakes
• Entrance gate or guillotine gate
• Draft or stop gate
• Optional weighing-system interface
• Optional foot-rot treatment bath
• Optional remote gate-control accessories

The race forms a restricted livestock passage between two parallel or slightly angled side structures. Adjusting the side position changes the available internal width so the passage can be matched to the body size of the sheep being handled.

A correctly configured race encourages sheep to approach gates, weighing equipment or treatment stations in an orderly single-file flow. Sheeted side sections reduce visual distraction while limiting opportunities for animals to place their heads or legs outside the race.

Entrance, stop and drafting gates can then be used to control individual animals or groups and direct livestock toward the required exit pen.

• Commercial sheep handling yards
• Sheep drafting and sorting operations
• Electronic and mechanical weighing stations
• EID identification and flock recording areas
• Vaccination and veterinary treatment lanes
• Drenching and routine health-management operations
• Foot-rot treatment systems
• Shearing and flock preparation areas
• Portable livestock handling yards
• Breeding and livestock selection facilities
• Complete sheep farm and steel structure livestock building projects

• Race length: Customizable
• Adjustment range: According to project requirements
• Panel height: Customizable
• Sheeted or open-panel configuration: Available upon request
• Steel section specification: According to project requirements
• Guillotine gate configuration: Available upon request
• Draft and stop gate options: Customizable
• Weighing equipment integration: Available upon request
• Foot-bath integration: Available upon request
• Permanent fixing posts: Available for fixed installations
• Complete sheep handling layouts can be designed according to local climate and farm conditions.

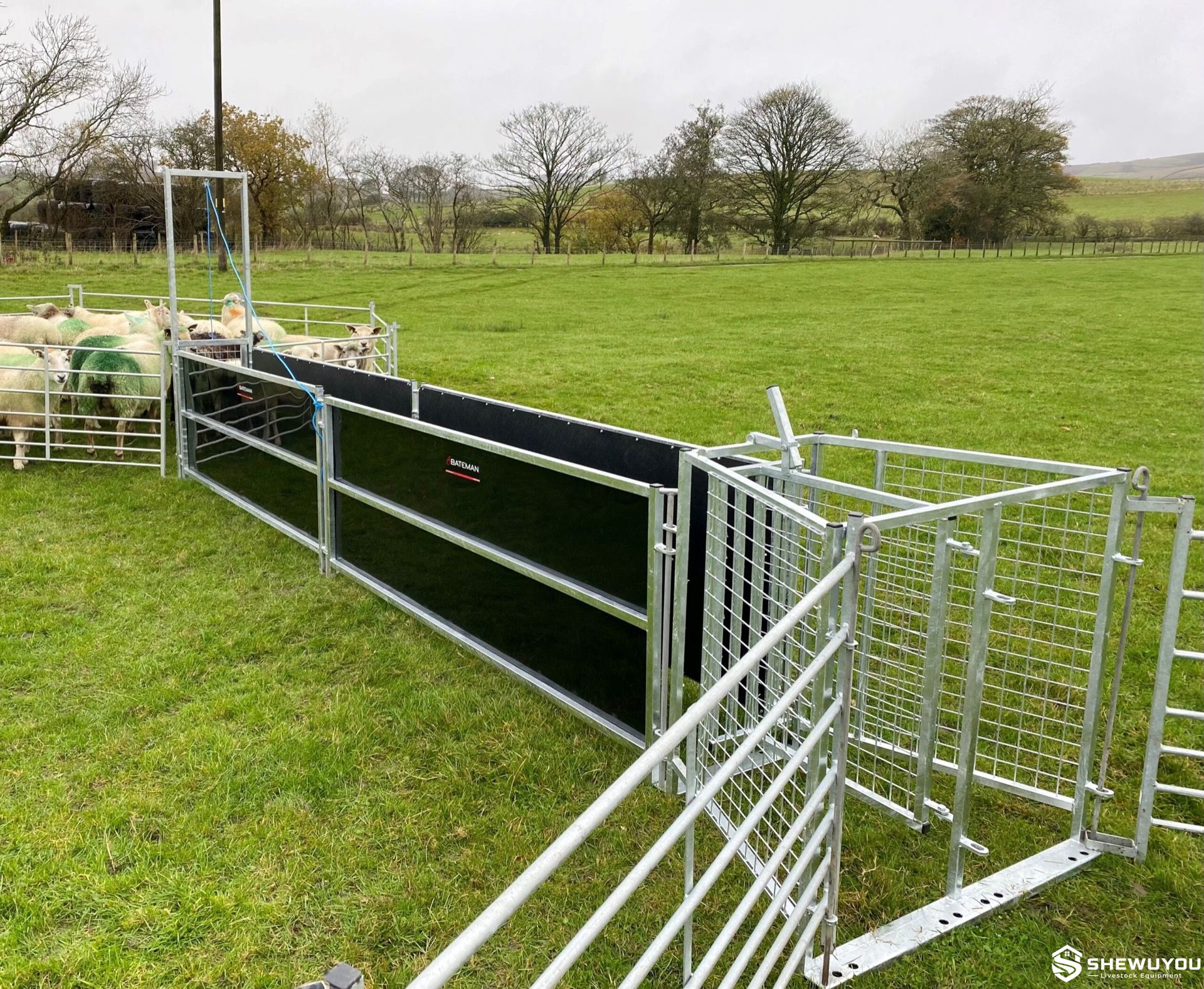

For portable installations, race panels are positioned along the required livestock route and connected using compatible joining pins or stakes. Where ground conditions permit, extended stakes can provide additional stability by being driven into the ground.

Permanent commercial installations may use dedicated fixing posts or other engineered anchoring methods according to the yard layout and site requirements. The race should be aligned with holding pens and exit gates to maintain smooth livestock flow.

Inspect panel joints, gate hinges, adjustment mechanisms, pins and galvanized surfaces regularly. Remove accumulated manure, soil and corrosive contamination, and keep moving gate components free from obstruction.

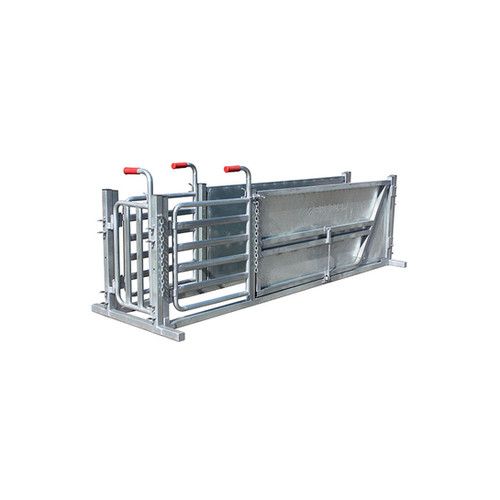

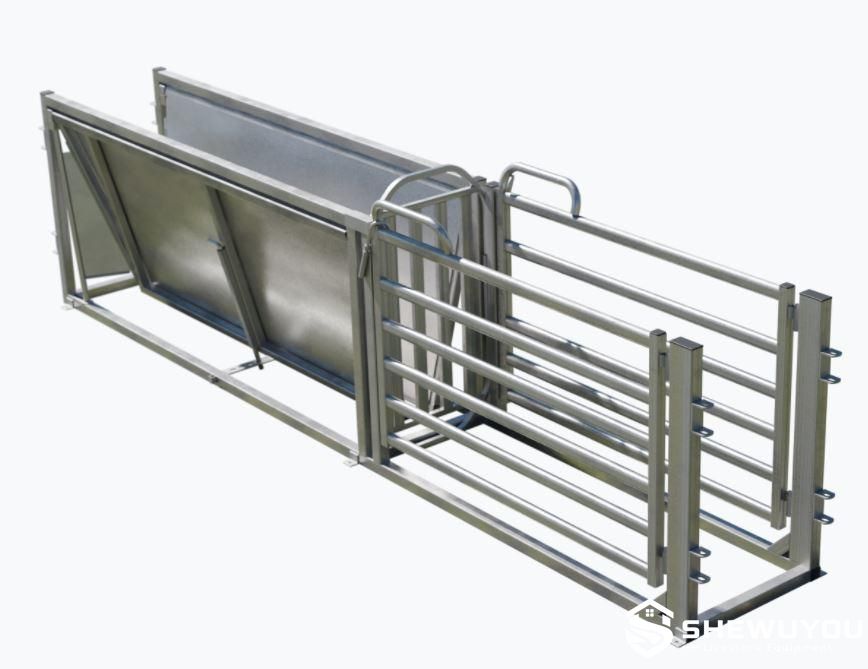

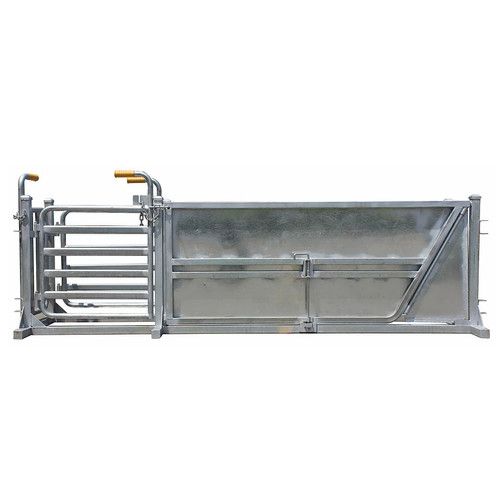

A typical commercial handling layout combines the adjustable race with sheeted hurdles, a race joining section, entrance control gate and draft or stop gate. Holding pens can be positioned before the race to maintain continuous flock movement.

For larger projects, the system can also be integrated with weighing equipment, EID readers, treatment stations and multi-way drafting gates to create a complete livestock processing line.

Q: Why is adjustable race width important?

A: Different breeds, ages, wool lengths and body sizes require different passage widths. Adjustment helps maintain better sheep positioning and smoother livestock flow.

Q: Can the race be used as a portable system?

A: Yes. Modular panels and joining components allow portable layouts to be assembled and relocated according to farm requirements.

Q: Why use sheeted race sides?

A: Sheeted sides reduce visual distractions, improve containment and help prevent animals from extending their legs or heads through the race structure.

Q: Can a weighing system be installed in the race?

A: Yes. Race layouts can be configured for compatible livestock weighing and identification equipment according to project requirements.

Q: Can a foot bath be integrated?

A: Yes. Compatible foot-rot treatment bath options can be incorporated into suitable race layouts.

Q: Can SHEWUYOU provide a complete sheep yard layout?

A: Yes. Race dimensions, holding pens, gates, drafting areas and related livestock equipment can be configured according to project requirements.
