Product Name	Portable Sheep Handling Race
Product Image
Product Overview	The Portable Sheep Handling Race is a modular livestock handling system designed to guide goat-farming-equipment/" target="_blank" class="keylink">sheep through a controlled passage during sorting, treatment, weighing and routine flock management. Its portable construction allows the race to be assembled where handling is required without depending on a permanent building structure. The system combines sheeted sheep hurdles with entrance control, drafting and race-joining components to create a practical working corridor. It can be used as a standalone portable unit or incorporated into a larger sheep handling layout according to the selected configuration. The design is suitable for commercial sheep farms, breeding operations, agricultural contractors, livestock equipment distributors and farm engineering projects.
Key Features	Portable modular design for flexible use in livestock yards and field handling areas. Sheeted side hurdles create a defined passage and help maintain controlled animal movement. Guillotine gate controls the number of sheep entering the race at one time. Two-way drafting gate enables sheep to be diverted into different pens or race directions. Race joiner helps maintain the alignment and spacing of opposing hurdles. Additional hurdles can be connected through compatible drilled connection lugs. Galvanized steel construction provides suitable corrosion protection for demanding agricultural environments. Suitable for sorting, treatment and routine flock-management workflows.

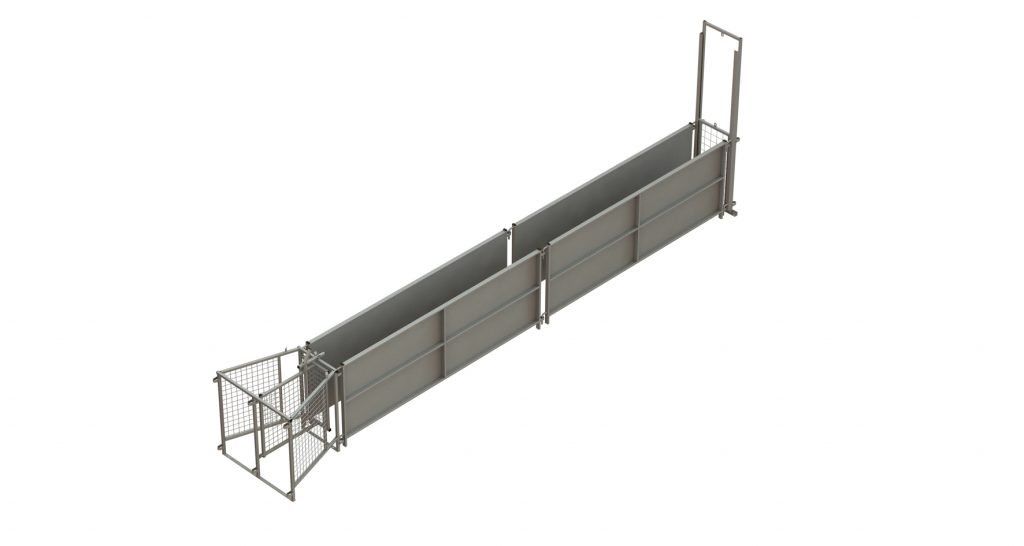

Structural Components	The Portable Sheep Handling Race is formed from opposing sheeted sheep hurdles, a guillotine gate, a race joiner and a drafting stop gate. The referenced IAE configuration uses two 2480 mm economy sheeted hurdles on each side, together with the gate and joining components. The sheeted hurdles provide the main containment structure, while the race joiner is positioned between the hurdles to reduce outward movement or “splaying”. The gate assemblies provide controlled access and animal diversion at the ends of the race. Connection details, panel profiles and protective finishes can be specified according to project requirements.
Working Principle / Structural Principle	Sheep enter the race through the controlled entrance and are guided through the narrow passage formed by the opposing sheeted hurdles. The guillotine gate can regulate the number of animals within the race, supporting a more controlled handling sequence. At the discharge end, the two-way drafting gate can direct sheep into one of two designated pens or race directions. The race joiner maintains the relationship between the side hurdles and improves the stability of the portable structure. The modular principle allows the race to be assembled, extended or relocated according to farm workflow and site conditions.
Technical Specifications	Product Type: Portable sheep handling race Primary Material: Steel Reference Overall Race Length: Approximately 4960 mm Reference Hurdle Height: 905 mm Reference Hurdle Length: 2480 mm per hurdle Side Configuration: Sheeted livestock hurdles Entrance Control: Guillotine gate Drafting: Two-way drafting stop gate Stabilization: Race joiner between opposing hurdles Surface Treatment: Galvanized or specified protective finish Dimensions, steel profiles and configuration: Customizable according to project requirements
Applications	The Portable Sheep Handling Race is suitable for: Commercial sheep farms and breeding operations Portable livestock handling yards Sheep sorting and drafting areas Vaccination, drenching and treatment workflows Weighing and livestock identification operations Temporary or semi-permanent farm handling facilities Agricultural engineering and livestock facility projects Mobile handling equipment packages for distributors and contractors
Customization Options	SHEWUYOU can develop portable sheep race configurations according to flock size, handling workflow, available installation space and local farm conditions. Race length, panel height, working width, sheet configuration, steel profile, gate arrangement, connection details and surface treatment can be customized according to project requirements. The race can also be engineered as part of a larger sheep handling system incorporating holding pens, drafting gates, forcing areas, weighing equipment and treatment stations.
Installation & Maintenance	Position the opposing hurdles on suitable level ground and connect the panels using the specified race joiner and connection hardware. Install the entrance and drafting gates in accordance with the required animal-flow direction. For portable applications, the system can be positioned and adjusted according to the working area. For more permanent installations, additional support posts or fixing arrangements may be used according to site conditions. Inspect hinges, gate mechanisms, joining points, welds and protective coatings regularly. Keep moving components and connection areas free from accumulated mud, manure and debris.
Project Cases	The referenced Economy Portable Sheep Race is configured as a standalone system with an approximately 4960 mm race, 905 mm high sheeted hurdles, a guillotine gate, a two-way drafting gate and a race joiner. The system can be used for sheep sorting and treatment and additional hurdles can be attached through drilled lugs. :contentReference[oaicite:0]{index=0} The reference configuration uses four 2480 mm sheeted hurdles in total, together with the associated gate and joining components. The manufacturer notes that this economy configuration is a standalone system rather than a component-compatible extension of its heavy-duty range. :contentReference[oaicite:1]{index=1} SHEWUYOU can develop project-specific portable handling layouts according to flock size, site conditions, animal-flow requirements and local climate.
Product FAQ	Q: What is a portable sheep handling race used for? A: It provides a controlled passage for sheep during sorting, treatment, weighing, drafting and routine flock management. Q: What is the reference length of the race? A: The referenced configuration provides an approximately 4960 mm race with 905 mm high hurdles. Q: What components are included in the reference system? A: The reference system comprises sheeted hurdles, a guillotine gate, a race joiner and a two-way drafting stop gate. Q: Can additional hurdles be added? A: The referenced design allows additional hurdles to be attached through drilled connection lugs. Q: Can the race dimensions be customized? A: Yes. Race length, width, height, panel configuration and gate arrangement can be customized according to project requirements. Q: Is galvanized steel suitable for outdoor livestock handling? A: Galvanized steel provides corrosion protection suitable for many agricultural environments. The appropriate finish should be selected according to local climate and farm conditions.
