Product Name	Fully Sheeted Sheep Drafting Panel

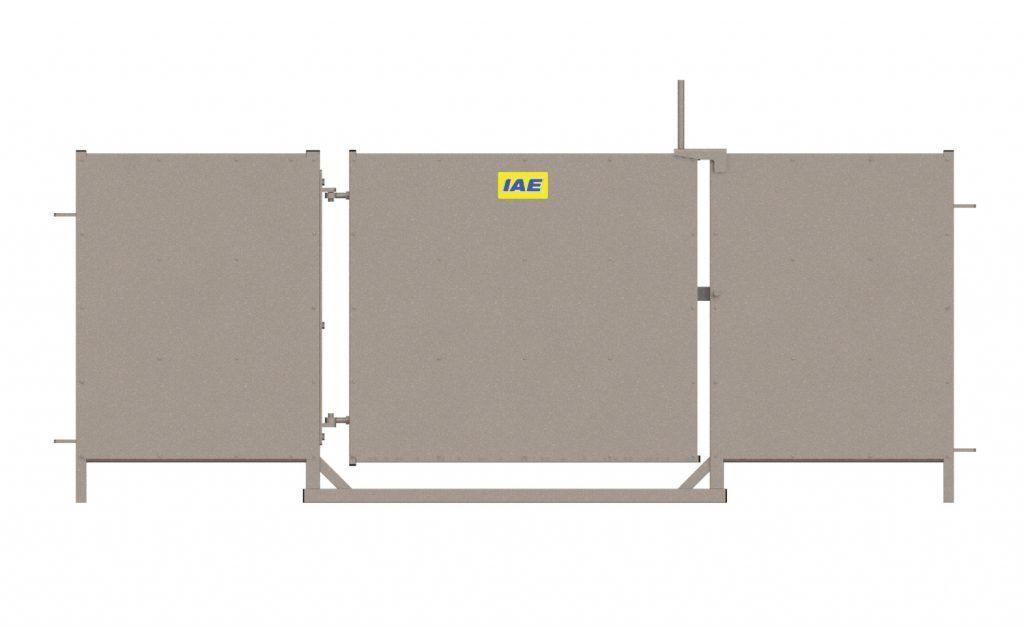

Product Image
Product Overview	The Fully Sheeted Sheep Drafting Panel is a heavy-duty livestock handling component designed for controlled goat-farming-equipment/" target="_blank" class="keylink">sheep sorting, shedding and pen diversion. Its fully enclosed side structure helps limit visual distractions and provides a defined route for moving animals between adjacent handling areas. The integrated drafting section is operated from the top of the panel, allowing handlers to divert sheep into an adjacent pen without entering the animal flow. The modular design makes the panel suitable for sheep races, sorting pens, holding yards and complete livestock handling systems. It is suitable for commercial sheep farms, breeding operations, agricultural engineering projects and livestock equipment distribution programs.
Key Features	Fully sheeted construction helps reduce visual distractions during sheep handling. Integrated drafting gate allows animals to be diverted into an adjacent pen. Top-operated lever provides convenient control from the operator side of the handling system. Gate section can be configured to hinge from either end, supporting different yard layouts. Drilled connection lugs support modular attachment to adjoining livestock hurdles. Heavy-duty steel construction is suitable for repeated use in commercial livestock facilities. Compatible with sheep races, holding pens, sorting systems and other handling components.
Structural Components	The panel comprises a rigid steel frame, fully sheeted infill, an integrated drafting gate, operating lever, hinge components and drilled connection lugs. The solid sheeted infill creates a continuous side barrier, while the framed gate section provides a controlled opening between the main race and an adjacent sorting pen. The structural configuration can be adapted to suit different livestock handling layouts.
Working Principle / Structural Principle	During handling, sheep are guided along the race formed by the sheeted panels. When selected animals need to be separated, the operator uses the top-operated lever to open the drafting gate and redirect the animals into an adjacent pen. The fully sheeted sides help create a more visually controlled passage, while the hinged gate arrangement allows the drafting direction to be matched to the required yard configuration. Multiple panels can be connected to create a modular drafting and sorting system for routine flock management.
Technical Specifications	Product Type: Fully sheeted sheep drafting and shedding panel Primary Material: Steel Panel Height: 1000 mm in the referenced standard configuration Available Lengths: 1525 mm, 2500 mm and 3010 mm in the referenced configuration Gate Operation: Top-operated lever Gate Orientation: Hinged from either end according to configuration Connection: Drilled lugs for adjoining handling hurdles Surface Treatment: Galvanized, powder-coated or other specified finish according to project requirements Dimensions and structural configuration: Customizable
Applications	The Fully Sheeted Sheep Drafting Panel is suitable for: Commercial sheep farms and breeding facilities Sheep drafting and sorting yards Sheep races and adjacent holding pens Flock separation and routine livestock management Weighing, vaccination and treatment workflows New livestock facility construction and existing yard upgrades Agricultural engineering and customized livestock equipment projects
Customization Options	SHEWUYOU can supply customized sheep handling components according to farm layout, flock management procedures and project requirements. Panel length and height, steel profile, sheeted infill, gate position, hinge orientation, connection details and surface treatment can be customized. Complete drafting layouts can also be developed with sheep hurdles, race panels, stop gates, sliding gates and holding pens. Configurations can be designed according to local climate, farm conditions and the requirements of agricultural engineering projects.
Installation & Maintenance	The panel is installed by connecting its drilled lugs to adjoining sheep hurdles or compatible handling components. The gate orientation should be selected before installation to match the required animal flow and drafting direction. Check all connection points, hinges, gate hardware and operating mechanisms before use. Keep the gate and hinge areas free from mud, manure and other debris. Regular inspection is recommended for commercial facilities with frequent livestock handling. Cleaning and corrosion-protection procedures should be selected according to the surface finish, washing practices and local farm environment.
Project Cases	Fully sheeted drafting panels are commonly incorporated into modular sheep handling systems where animals need to be separated from a main race into adjacent sorting pens. The referenced product range includes 1525 mm, 2500 mm and 3010 mm long configurations at 1000 mm high, providing different options for handling-yard layouts. :contentReference[oaicite:0]{index=0} SHEWUYOU can develop complete livestock handling layouts according to flock size, available installation space, handling workflow and regional farm conditions.
Product FAQ	Q: What is a fully sheeted sheep drafting panel used for? A: It is used to guide and divert sheep from a main handling race into an adjacent pen during sorting and flock management. Q: Does the panel include a drafting gate? A: Yes. The referenced design incorporates a gate section operated by a top-mounted lever. Q: Can the drafting direction be changed? A: The gate section can be hinged from either end, allowing the unit to be configured for different handling layouts. Q: What standard dimensions are available? A: The referenced range includes 1525 mm, 2500 mm and 3010 mm lengths with a 1000 mm height. Custom dimensions are available according to project requirements. Q: Can it be connected to other sheep panels? A: Yes. Drilled connection lugs allow the panel to form part of a modular sheep handling system. Q: Is the panel suitable for commercial livestock operations? A: Yes. Its steel construction and modular design make it suitable for commercial sheep farms, agricultural contractors and livestock handling projects.
